Tree Grid

Use the Tree Grid Component to let the user browse and interact with a vast amount of hierarchical data visually represented in a tabular layout. It also supports the features available for the Grid. The Tree Grid is visually identical to the Ignite UI for Angular Tree Grid Component

Tree Grid Demo

Using the Tree Grid in Figma

Similarly to the Grid, the Tree Grid is essentially a repeater of columns and rows showing hierarchical data in a flat, tabular layout. In Figma, you can easily use it by dragging a Grid/Tree Grid component to your frame. To design a Tree Grid with more columns and rows, the component needs to be detached by selecting Detach instance option from the contextual menu. In your layers panel, you should see the following:

Layer	Use
🚫 componentVersion	A special locked layer starting with a prohibited icon. This layer is required by the code generation and you should avoid deleting or modifying it.
🚫 metadata	A special locked layer starting with a prohibited icon. This layer is required by the code generation and you should avoid deleting or modifying it.
Column 1	Contains all the cells in the column - Header and Body Cells
...	Columns between Column 1 and Column 7
Column 7	Contains all the cells in the column - Header and Body Cells

After detaching, you may increase the number of columns inside the Tree Grid, by duplicating any of the existing columns. In order to increase the number of body cells, you should use the Detach instance option first over the specific column and you should see the following:

Layer	Use
🚫 metadata	A special locked layer starting with a prohibited icon. This layer is required by the code generation and you should avoid deleting or modifying it.
Header	Contains all the elements related to the Header component
Body Cell 1	Contains a specific body cell
...	Cells between Body Cell 1 and Body Cell 9
Body Cell 9	Contains a specific body cell

Then you can duplicate any of the body cells that already exist inside the column.

After you increase or decrease the number of columns or cells, you should manually adjust the size of the Tree Grid Component.

Cell Types

The Tree Grid extends the three types of regular Grid cells Header, Body, and Summary with a TreeColumn cell, which is used to create and organize the hierarchy. It is always used as the first Body Cell in every row and comes with a predefined icon and action for collapsing/expanding the row.

To understand how regular Header, Body, and Summary cells can be used for different types of data and configured to enable the various Tree Grid features, please refer to the general Grid topic.

Cell Size

The TreeColumn cell supports three size variants of the Tree Grid: Large, Medium and Small.

Cell Depth

The Tree Grid TreeColumn cell provides a visual indication for the level of the data hierarchy via the Level property, which can be set to Root Level, Child Level or Grandchild Level. In Figma you can switch between them using the Level property once you have selected a Cell from Column 1 and have gone to the Level base component inside it in the layers panel.

Styling

The Tree Grid comes with styling flexibility through the options available for the individual cell text, icons, and background colors in the various states available, as well as the hiding of right and bottom borders.

Usage

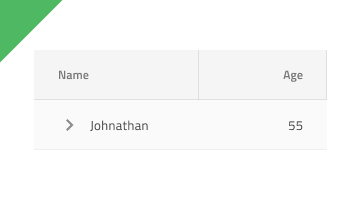

Similarly to the Grid, the most important thing about the Tree Grid is the alignment of the data inside its Header and Body Cells. Text should always be aligned left, leaving variable empty space to the right, and numbers should always be aligned right, leaving variable empty space to the left.

Do	Don't
